Powerful Services
• Major Customization Service
• Professional Technical Support
High Performance Architecture
• LVDS Support
• Intel 945GM + ICH7-M
• Intel Graphics Media Accelerator 950
• Dual Channel DDR2 Max 4GB
• Intel Core Duo / Solo
• QXGA 2048 x 1536 Resolution Support
• NTSC / PAL
• High Quality 6-CH AC’97 Audio
Strong I/O Capability
• 8 x USB2.0, 6 x SATA, 2 x IDE, 2 x RS-232, 2 x Giga Ethernet.
Multi-OS Support
• Windows : 2000 / XP / 2003
• Linux Kernel : 2.4.X / 2.6.X
DVB Tuner Card Support
• DVB-S, DVB-T and DVB-C
Green Product
• RoHS Compliance
Processor
• Intel Core Duo / Solo processor
• Support FSB 667/533 MHz
Chipset
• Intel 945GM + ICH7-M chipset
Memory
• Support DDRII 667/533/400 MHz memory
• Two 240-pin DDRII memory modules up to 4GB
Graphic
• LVDS support
• Support up to QXGA 2048 x 1536 resolution
• Intel dual-frequency graphics technology
• Intel Dynamic Video Memory Technology (DVMT) 3.0
• Intel smart 2D Display technology
• High quality 3D setup and render engine
• Video DVD / PC-VCR support
Audio
• 6 channel high quality with AC’97 2.3 specifications
• 16-bit stereo full-duplex codec with 48KHz sampling rate
• Support 32/44.1/48KHz S/PDIF input
• Meet Microsoft WHQL/WLP 2.0 audio requirements
• A3D, EAX 1.0/2.0, Direct Sound 3D & I3DL2 compatibles
Expansion Slot
• One x16 PCI-Express slot
• One 32-bit PCI slot ( support DVB tuner cards and PCI riser cards )
• One 32-bit Mini PCI slot
PCI Bus Master IDE
• Support ATAPI CD-ROM, LS-120, ZIP
• Support PATA 33/66/100 IDE ( 2 devices )
• DOM support
Series ATA
• 2 Serial ATA devices with transfer rate 150MB/s
SATA RAID
• Marvell 88SE6145
• 4 Serial ATA support SATA RAID RAID 0, 1, 0+1 and 10
• 1 PATA 100 IDE
Fast Ethernet
• Support two RJ45 Giga high fast Ethernet
USB 2.0
• Support USB 2.0 with transfer rate 480 Mb/s
• Support total 8 USB 2.0/1.1 ports
Flash ROM
• Award system BIOS supports PnP, APM, DMI,
ACPI, & Multi-device booting features

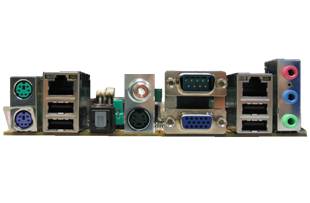

Rear Panel I/O ports
• PS/2 keyboard & mouse, 2 x RJ45 • 4 x USB 2.0, composite video
• RS-232, S/PDIF, S-Video • 25-pin d-sub female parallel port
• 15-pin d-sub female VGA connector •Audio jacks ( Line in/out & MIC )
Internal I/O connectors
• 3x1-pin CPU fan power connector • 2 x 3x1-pin system fan power connector
• 15x2-pin LVDS connector • 5x2-pin RS-232 header with housing
• 9x2-pin front panel header • 24-pin ATX power connector
• 4-pin power connector • inverter header
• 2 x 5x2-pin USB 2.0/1.1 headers ( for additional 4 USB 2.0/1.1 ports )
