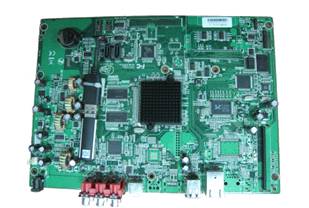

Main Chip
• On-board Philips PNX8950 (MIPS, 250MHz)
Memory
• 256MB DDR memory for system
• 64MB flash for boot and system
Graphic
• HDTV 720i, 720p support
• MPEG, MPEG2 MP@ML, MPEG2 MP@HL
• PAL B/G, NTSC-M and SECAM endoding
• Display support
Audio
• MPEG and MPEG2 level I/II/III
• Sample rate 32, 44.1, 48, 96KHz
USB 2.0
• Support USB 2.0 with transfer rate 480 Mb/s
•Support total 4 USB 2.0/1.1 ports
Expansion Slot
• One 32-bit Mini PCI slot
Series ATA
• Two Serial ATA devices with transfer rate 150MB/s
Fast Ethernet
• Support two RJ45 ports 10/100Mbps fast Ethernet

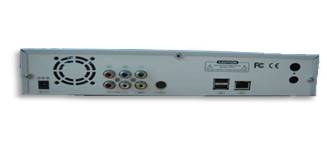

Rear Panel I/O ports
• DVB tuner connector • RCA Audio L/R & CVBS
• Y, Pb, Pr • 2 x USB 2.0
• LAN • S-Video
Internal I/O connectors
• 2 x RS-232 headers • JTAG header
• EJTAG header • Front Panel header
• Smart card header • 5x2 pin USB 2.0 header ( for additional 2 USB 2.0/1.1 ports )
| 添加时间 | 产品类别 | 型号 | 规格 | 版本 | 资料大小 | 下载 |
| 提示：暂无资料 | ||||||
Accessory
• Power core , 10A 125V 180cm
• Power Adapter Input :100~140V , Output : DC 12V/3A 36W
• Coaxial cable 1.82m RCA to RCA
• S-Video Cable , 4 PIN male , 150cm
• Battery 1.5 AAA 1 pcs.
• Remote Controller ( White , Chinese Printing )
• Digital TV Antenna ( DVB-T ) , IEC (male )
• 1G USB Disk ( for application software )
