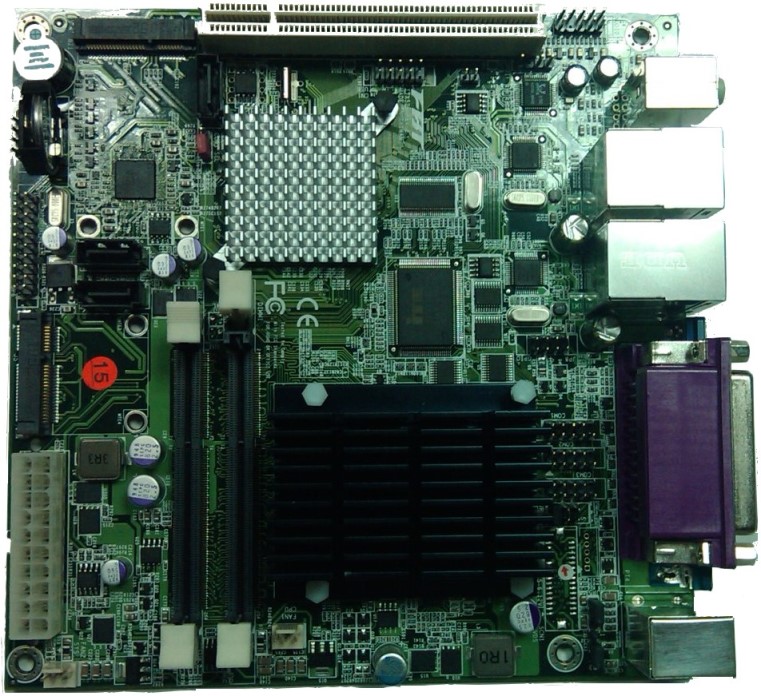

CPU : Onboard Intel Dual Core Atom D525 processor 1.8Ghz
CHIPSET : IntelR ICH8M
GRAPHICS : Integrated IntelR Graphics Media Accelerator 3150(GMA3150), Integrated DirectX 9 graphics processor
MEMORY : 2 x 240-pin DDR3 SO-DIMM up to 4GB
EXPANSION SLOT : 1 x PCI slot (3x PCI through Riser card)1x mini PCI-E
STORAGE : ICH8M 2 x Serial ATA 3.0Gb/s devices, 1 x mSATA , RAID controller 2x SATAII
AUDIO : 2 X Realtek ALC662 HD audio CODEC, Compliant with HD audio specification
LAN : 2x RJ45 , Realtek 8111DL Giga Lan
-------------------------------------------------------------
REAR PANEL I/O :
1.) 1 x PS/2 keyboard & PS/2 mouse connectors
2.) 1 x D-sub(VGA)
3.) 3 x Serial port
4.) 2 x RJ45 LAN connector
5.) 1 x Audio port (Line-in(option), Line-out, Mic-in option)
6.) 4 x USB 2.0 Ports
-------------------------------------------------------------
INTERNAL I/O CONNECTORS & HEADERS:
1 x 20-pin ATX Power Supply connector
1 x 3-pin CPU_FAN connector
1 x Front panel switch/LED header
1 x Front panel audio header
1 x Clear CMOS header
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x 3-pin SYS_FAN connector
2 x SATA 3Gb/s connectors
1 x Serial port
1 x PATA(CF card IF)
-------------------------------------------------------------
SYSTEM BIOS AMI BIOS with 8Mb SPI Flash ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
F11 hot key for boot up devices option
Support USB boot AMI flash tool
FORM FACTOR Mini ITX 170x170mm
