n USB Card Reader support 8 memory card：CF-I/-II、MicroDrive、SM、MC、SD、MS、MS-Pro100 for data display
saving space.
n Support High Resolution Video 1280 x 720 P
n RTC electronic, program can set up start and stop.
n Input Voltage：~ 240V / 1A
n Monitor size 19 inch LCD PANEL,WXGA 1440X900 resolution,16.7 million color, Brightness 300 cd/m2,Viewing Angle
Horizontal and Vertical 160 degree.
n Ethernet 100/10M
n Audio 3W X 2, output left and right, Remote control available.
n RS232 for system debug.
n 2GByte USB DISK store space.
n Support wireless USB, Wireless Lan or 3G Lan.
n CPU x 2, one of CPU for image decoder.
n NOR FLASH 32Mbyte for stable system operation.

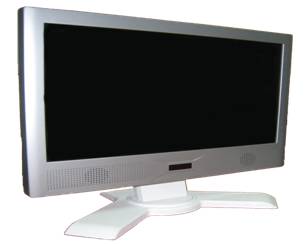

01. Model Name : Digital Signage
02. Model no. : DS-420-19W

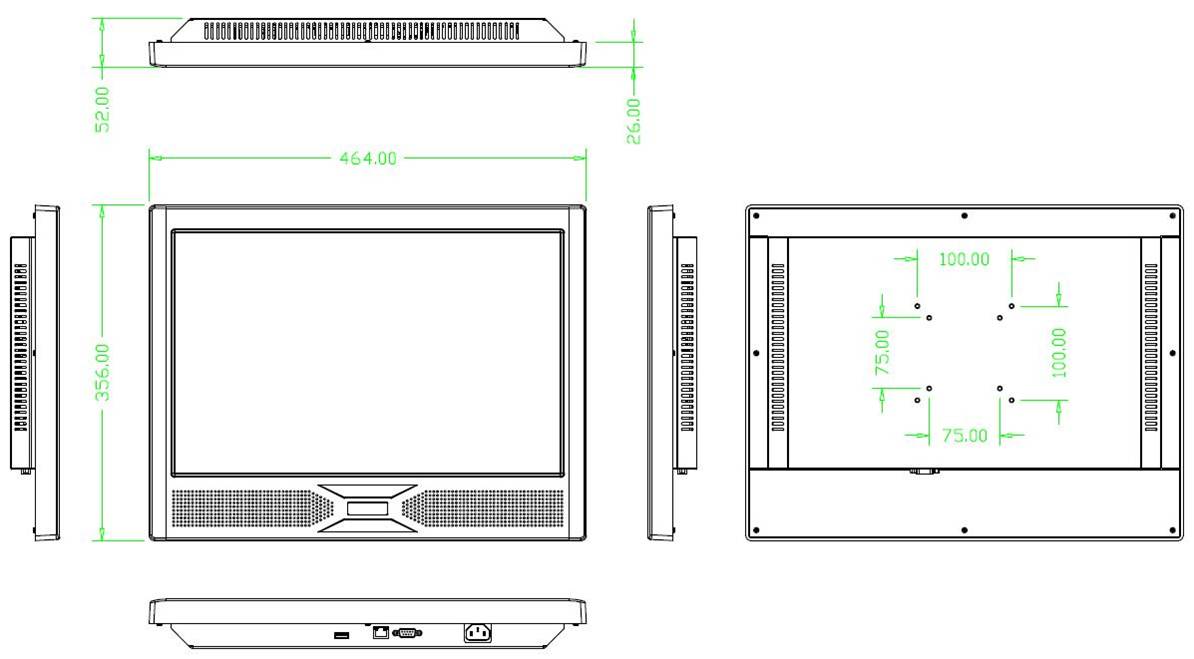

03. Size : 464W*52D*356H(mm)
03. POWER : 110/220VAC 1ψ 60Hz
04. Power Consumption: 24VA
05. CPU: IXP420BB & EM8621
06. NOR Flash : 32M byte
07. DRAM : 128MByte( 64M for system/64M for Video decode )
08. USB DISK Storage : 2GByte
09. RS-232C for debug
10. Audio : 3W X 2
11. Internet : Ethernet 100/10M
12. USB 2.0 X 1
13. Monitor size: 19 inch,
14. Resolution 1440x990 Viewing Angle 160 degree
15. Screw hole: VESA standard
