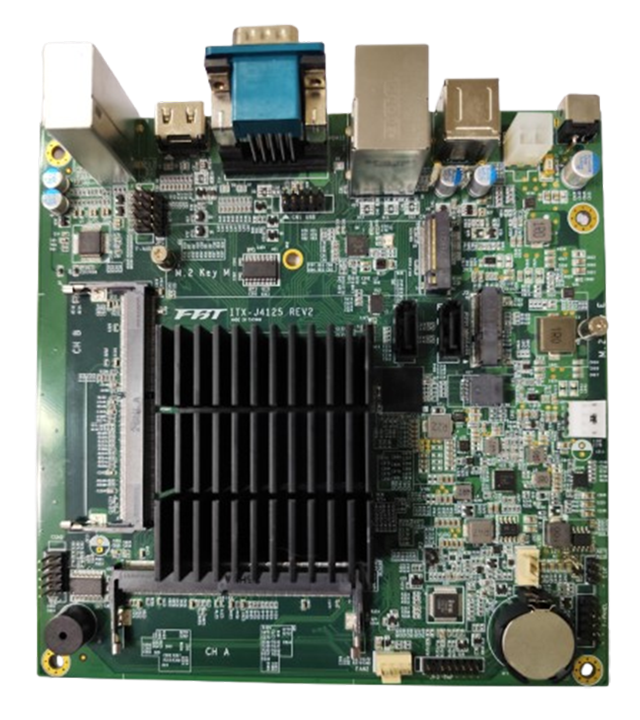

Overview of the SBC Promotion Kit (J4125 ITX Mini-ITX)
The SBC (Single Board Computer) promotion kit based on Intel Gemini Lake Refresh (J4125) is a compact, highly integrated system designed for a wide range of embedded applications.
With a Mini-ITX form factor (170mm x 170mm), it offers high-performance computing and low power consumption, making it ideal for space-constrained and fanless applications.
The system is equipped with comprehensive I/O options, expansion capabilities, and TPM security support, all packaged in a durable and reliable design.
Key Features：
• Processor：
| o | o Powered by Intel Gemini Lake Refresh (J4125), a quad-core SoC, known for its energy efficiency and ability to handle general computing tasks with UHD graphics support for high-definition displays. |
• Memory & Storage：
| o | Supports up to 16GB of DDR4 2400MHz So-DIMM memory, providing flexibility for memory-intensive applications. |
| o | Offers versatile storage options, including an onboard eMMC (16GB to 128GB), 2x SATA III ports, and an M.2 PCIe x4 slot for high-speed SSDs. |
• Expansion Slots：
| o | M.2 slots for both SSD (PCIe x4) and Wi-Fi (PCIe x1), enabling easy installation of high-speed storage and wireless connectivity. |
• Dual Display Support：
| o | Two Display ports support dual independent displays, making it ideal for digital signage, media players, and other visual computing applications. |
• Networking：
| o | Equipped with a Realtek RTL8111F Ethernet controller providing a fast and stable network connection through the RJ-45 port. |
• TPM Security：
| o | Optional support for hardware-based TPM (Infineon 9665 TPM 2.0) or firmware TPM (Intel fTPM), ensuring data integrity and encryption for secure applications. |

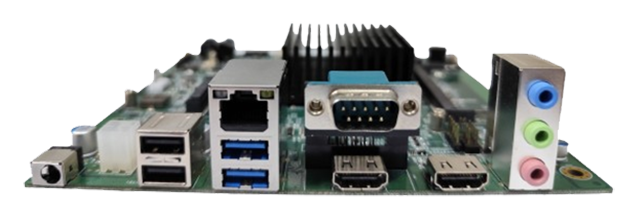

• I/O Ports：
| o | External I/O includes 2x USB 3.0, 2x USB 2.0, 2x Display, 1x RJ-45 LAN port, and 1x DB9 COM port for serial communication./td> |
| o | Internal I/O includes 3x USB 2.0 headers, RS-232, GPIO, and fan headers. |
• Watchdog Timer & Smart Fan Control：
| o | Built-in watchdog timer ensures the system automatically resets in case of a failure, with adjustable intervals from 1 second to 255 minutes. |
| o | Smart fan control allows RPM-based cooling, providing efficiency and quiet operation. |
• Power Failures Recovery & RTC：
| o | The system can automatically power on after power failures and supports Real-Time Clock (RTC) functionality for scheduled boot-up times. |
• CIR Connector：
| o | Consumer IR (CIR) connector supports remote control operations, making it a suitable choice for home entertainment systems. |
Applications：
The SBC promotion kit is versatile and can be used in various sectors, including：
• Digital Signage：
| o | Dual Display output supports multiple high-definition displays, making this kit perfect for video walls, information kiosks, and advertising screens. |
• Media Centers & Home Theater PCs (HTPC)：
| o | With UHD graphics, Display outputs, and CIR connector for remote controls, this board is ideal for home entertainment systems. |
• IoT Gateways：
| o | The robust networking capabilities and TPM support make this kit suitable for secure IoT gateway solutions for industrial automation, smart homes, or smart city applications. |
• Industrial Automation：
| o | The board’s watchdog timer, wide temperature range, and support for RS-232 make it an excellent option for industrial control systems. |
• Embedded Systems：
| o | Small form factor, TPM security, and fanless design make this kit ideal for embedded systems such as kiosks, medical devices, and point-of-sale (POS) terminals. |
• Edge Computing：
| o | Its compact size, low power consumption, and multiple I/O options make this SBC a powerful solution for edge computing, where real-time data processing is required at the network's edge. |
Why FBT？
FBT (likely standing for "Formosa Benchmark Technologies" or another industry name) focuses on offering reliable and highly optimized solutions for industrial and embedded computing applications. FBT’s emphasis on the following aspects makes its SBC kits stand out：
• Customization：
| o | FBT boards often come with customizable options such as TPM support, watchdog timer, and multiple power input options, providing flexibility for specific application needs. |
• Durability：
| o | FBT’s SBCs are built with robust components and designed to operate in challenging environments with extended temperature ranges and humidity tolerance. |
• Efficiency：
| o | FBT promotes energy-efficient solutions, allowing extended operational life with low power consumption, which is critical for embedded and industrial use cases. |
• Security：
| o | With TPM 2.0 support, both hardware (dTPM) and firmware-based (fTPM), FBT ensures that their boards meet the stringent security requirements for modern applications. |
• Scalability：
| o | FBT systems often come with ample I/O, expansion, and storage options, allowing them to scale for various industries, from IoT to automation and media. |
In conclusion, the FBT SBC promotion kit is a versatile, secure, and power-efficient solution suitable for a wide range of embedded computing applications, where reliability, expandability, and flexibility are critical. |
