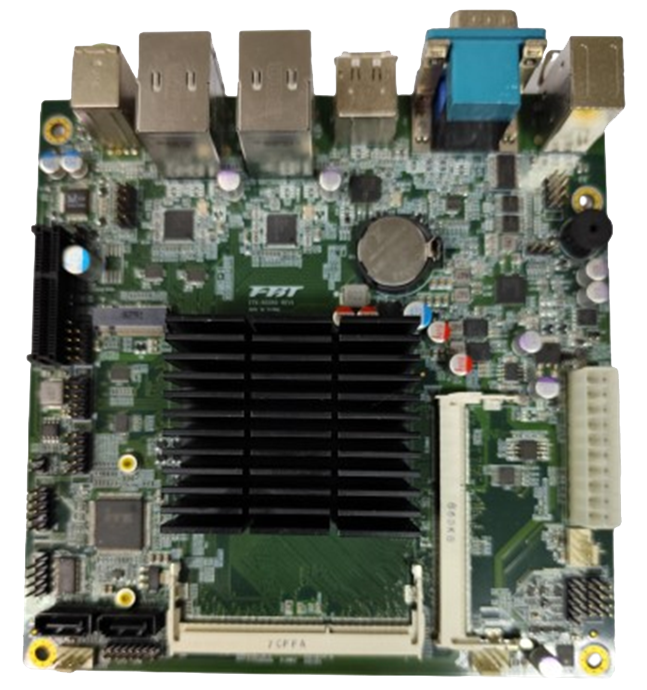

Overview of the FBT SBC Mini-ITX Main Board Promotion Kit (N4200/N3350/E3930)
The FBT SBC Mini-ITX Main Board Promotion Kit is a highly integrated and compact system built on Intel's Apollo Lake platform, featuring various CPU options like the Intel® Pentium® N4200, Celeron® N3350, and Atom® E3930. This SBC (Single Board Computer) is designed for demanding embedded, industrial, and edge computing applications. Its Mini-ITX form factor (170mm x 170mm) allows for efficient space utilization, while providing comprehensive connectivity, dual Ethernet, multiple display options, and security features like TPM 2.0.
Key Features：
• CPU Options：
| Offers a choice between Intel® Pentium® N4200, Celeron® N3350, or Atom® E3930 processors, providing flexibility in performance and power consumption for different applications. |
• Memory & Storage：
| Supports up to 8GB of DDR3L RAM and features expansion slots like M.2 B Key for SATA SSDs and PCIe for further customization, ensuring high-speed storage and versatile data handling. |

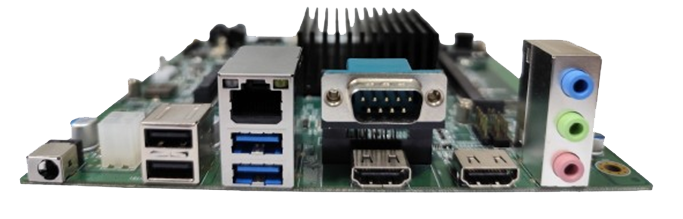

• I/O Connectivity：
| Equipped with dual gigabit Ethernet ports, 4 USB 3.0 ports, multiple USB 2.0 headers, and 2 RS-232 serial ports for extensive connectivity options, making it ideal for industrial environments requiring multiple interfaces. |
• Triple Display Support：
| The board supports up to three independent displays via Display, DisplayPort, and VGA, providing versatility for applications like digital signage and control room displays. |
• TPM 2.0 Security：
| Optional Infineon® 9665 TPM 2.0 provides robust hardware security for encryption, device authentication, and secure boot applications. |
• Watchdog Timer & Smart Fan Control：
| Ensures system reliability with an adjustable watchdog timer and smart fan control that helps maintain optimum temperature and performance. |
• Low Power Consumption：
| The board is optimized for low power consumption, with a typical TDP of 6W-6.5W, making it suitable for energy-efficient embedded and IoT applications. |
Applications：
• Industrial Automation：
| The dual Ethernet, RS-232 ports, and GPIO headers make this board suitable for controlling machinery, sensors, and automated processes in industrial settings. |
• IoT Gateways：
| The compact size, low power consumption, and TPM security features make it an ideal candidate for IoT gateways where secure data transmission and network connectivity are essential. |
• Digital Signage & Media Centers：
| With support for triple independent displays (Display, DP, VGA) and UHD graphics, the board can drive content for media centers, digital signage, and information kiosks. |
• Edge Computing：
| This board’s ability to process data locally with its efficient CPU and versatile I/O options makes it perfect for edge computing applications, where real-time data processing is critical. |
• Embedded Systems：
| Its small form factor, low power consumption, and high reliability make it suitable for embedded systems such as kiosks, point-of-sale (POS) terminals, and medical devices. |
Why FBT？
FBT (First Byte Technology) is recognized for delivering robust and reliable computing solutions for embedded and industrial markets. Here’s why FBT stands out：
1.Customization Options：
| FBT provides customizable solutions, including optional TPM security, expansion ports (M.2, PCIe), and a versatile set of I/O options, catering to various application needs. |
2.Reliability and Durability：
| FBT systems are built for rugged environments, offering extended temperature and humidity tolerance, making them ideal for industrial and embedded applications. |
3.Energy Efficiency：
| With a focus on low-power consumption, FBT designs energy-efficient systems that extend operational life and reduce heat generation in fanless applications. |
4.Comprehensive Connectivity：
| FBT boards are equipped with extensive I/O and networking options, including dual Ethernet and multiple display outputs, making them highly adaptable for different industries. |
5.Security Features：
| FBT’s support for TPM 2.0 (both hardware and firmware-based) ensures their boards meet the security requirements for modern applications, such as secure boot, data encryption, and device authentication. |
Conclusion：
The FBT SBC Mini-ITX Main Board Promotion Kit offers a powerful, versatile, and secure solution for various industrial, embedded, and IoT applications. Its wide range of features—like flexible I/O, multiple CPU options, TPM security, and robust reliability—make it an excellent choice for businesses requiring scalable, energy-efficient computing solutions. |
