ITX-FBTWL

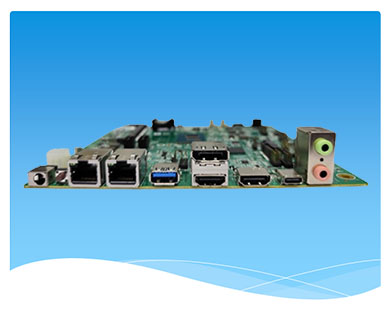

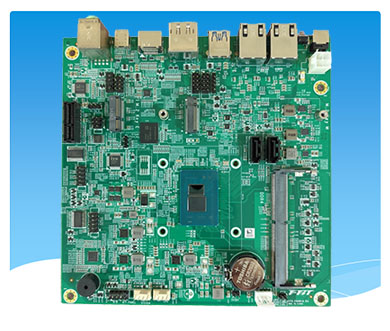

The FBT ITX-FBTWL is a high-performance Single Board Computer (SBC) designed for industrial and commercial applications. It integrates Intel Alder Lake N series and Amston Lake series processors, delivering robust computing power, extensive connectivity, and versatile expandability options in a compact, fanless 1U chassis.

Overview
Specification
Download
Package
Q & A

Key Features

• CPU: Intel® Alder Lake N series, Amston Lake series Processor
• Memory: Single Channel SO-DIMM DDR4 up to 16GB
• Display Output:
   o 4 display ports supporting a maximum of 3 display devices
   o 2x Display
   o 1x DisplayPort 1.4
   o 1x Type C with data and DP (DisplayPort) functions
• Networking:
   o 2x Intel i226V Ethernet ports supporting 2.5Gbps
   o Supports 10/100/1000/2500Mbps for high-speed networking
• Storage:
   o M.2 slots (M.2 2280 NVMe) for ultra-fast SSD storage
   o eMMC storage options (32GB - 128GB)
   o 2x SATA ports for additional storage
• Connectivity:
   o 1x USB 3.2 ports
   o M.2 2230 for wifi and BT
   o 2x UART/COM Ports
   o 1x I2C Bus
   o 1x PCI-E by 1 for expandability
   o GPIO, front audio, and SPDIF support
• Power Supply: 12V or 13V–24V DC-In
• Other Features:
   o Fanless design for 1U chassis, ideal for silent and dust-resistant environments
   o Power Failure Recovery with 3 modes: SOC, Super IO, Hardware power-on
   o MLCC solid capacitors for longer-lasting reliability
   o Super IO: Watchdog timer, GPIO, and smart fan control
   o BIOS: RTC Wake-Up, I2C support

Target Applications

• Industrial Automation：

Rugged and fanless design makes this SBC suitable for automated manufacturing systems and industrial monitoring setups.
• Network Edge Devices：

High-speed networking with dual 2.5Gbps Ethernet ports makes it ideal for IoT gateways, edge servers, and remote data management.
• Digital Signage：

With multi-display output (up to 3 displays), this SBC can drive dynamic content in digital signage applications.
• Embedded Systems：

Its compact size and high computing power make it a perfect fit for embedded control systems, robotics, and compact server environments.
• Media Applications：

Hardware video decode and encode support for 1080p and 4K video make this SBC perfect for media streaming servers or video processing tasks

Benefits：

• High Performance in a Compact Design：

The Intel Alder Lake processors provide the computing power you need for demanding industrial and commercial applications.
• Fanless, Silent Operation：

The fanless design enhances reliability in harsh environments and reduces maintenance costs due to dust and debris.
• Extensive Connectivity：

Multiple USB, UART, I2C, and Ethernet ports offer great flexibility in connecting peripherals, sensors, and network devices.
• Reliable and Durable：

Solid capacitors (MLCC) ensure long-term reliability, even in 24/7 operation environments.
• Flexible Power Options：

Supports 12V or 13V–24V DC input, ideal for various installation environments including vehicles, machines, and automation systems.
• Power Failure Recovery：

Advanced power failure recovery ensures that your system will resume operation smoothly after power outages, making it ideal for mission-critical applications.

Feature Specification

Processor

Intel® Alder Lake N series, Amston Lake series

Memory

Single Channel SO-DIMM DDR4, up to 16GB

Networking

2x Intel i226V, 2.5Gbps Ethernet

Storage

1x M.2 2280 NVMe slots, eMMC (32GB–128GB), 2x SATA ports

Display Output

2x Display, 1x DisplayPort 1.4, 1x Type C

Connectivity

1x M.2 2230 1x USB 3.2, 2x UART/COM, 1x PCI-E, 1x I2C Bus, GPIO

Operating Temperature

0°C to 45°C (Extended temperature optional)

Power Supply

12V or 13V–24V DC input

Form Factor

Mini ITX 170*170mm

AddTime Category Model Specification Version Data size Download

2024-12-13 Motherboard ITX-FBTWL HD_AUDIO R283 414MB

2024-12-11 Motherboard ITX-FBTWL VGA v32.0.101 993MB

2024-12-11 Motherboard ITX-FBTWL SerialIO v30.100.2229 3MB

2024-12-11 Motherboard ITX-FBTWL INTEL_LAN v29.4 2MB

2024-12-11 Motherboard ITX-FBTWL Intel_CSME v16.50.0 936MB

2024-12-11 Motherboard ITX-FBTWL INF v10.1.19376 5MB

Available Accessories：

• Power Adapter (12V or 13V–24V DC)
• M.2 NVMe SSD (Up to 2TB)
• eMMC Modules (32GB to 128GB)
• Display and DisplayPort Cables
• 1U Chassis mounting bracket

MSG: NO RECORDS.

Processor	Intel® Alder Lake N series, Amston Lake series
Memory	Single Channel SO-DIMM DDR4, up to 16GB
Networking	2x Intel i226V, 2.5Gbps Ethernet
Storage	1x M.2 2280 NVMe slots, eMMC (32GB–128GB), 2x SATA ports
Display Output	2x Display, 1x DisplayPort 1.4, 1x Type C
Connectivity	1x M.2 2230 1x USB 3.2, 2x UART/COM, 1x PCI-E, 1x I2C Bus, GPIO
Operating Temperature	0°C to 45°C (Extended temperature optional)
Power Supply	12V or 13V–24V DC input
Form Factor	Mini ITX 170*170mm

AddTime	Category	Model	Specification	Version	Data size	Download
2024-12-13	Motherboard	ITX-FBTWL	HD_AUDIO	R283	414MB
2024-12-11	Motherboard	ITX-FBTWL	VGA	v32.0.101	993MB
2024-12-11	Motherboard	ITX-FBTWL	SerialIO	v30.100.2229	3MB
2024-12-11	Motherboard	ITX-FBTWL	INTEL_LAN	v29.4	2MB
2024-12-11	Motherboard	ITX-FBTWL	Intel_CSME	v16.50.0	936MB
2024-12-11	Motherboard	ITX-FBTWL	INF	v10.1.19376	5MB
