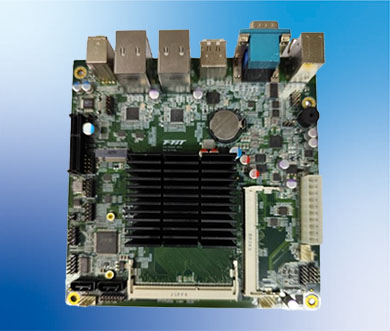

Key Features：
• CPU Options：
• Memory & Storage：
• I/O Connectivity：
• Triple Display Support：
• TPM 2.0 Security：
• Watchdog Timer & Smart Fan Control：
• Low Power Consumption：
Applications：
• Industrial Automation：
• IoT Gateways：
• Digital Signage & Media Centers：
• Edge Computing：
• Embedded Systems：
• CPU Options：
| Offers a choice between Intel® Pentium® N4200, Celeron® N3350, or Atom® E3930 processors, providing flexibility in performance and power consumption for different applications. |
| Supports up to 8GB of DDR3L RAM and features expansion slots like M.2 B Key for SATA SSDs and PCIe for further customization, ensuring high-speed storage and versatile data handling. |
| Equipped with dual gigabit Ethernet ports, 4 USB 3.0 ports, multiple USB 2.0 headers, and 2 RS-232 serial ports for extensive connectivity options, making it ideal for industrial environments requiring multiple interfaces. |
| The board supports up to three independent displays via Display, DisplayPort, and VGA, providing versatility for applications like digital signage and control room displays. |
| Optional Infineon® 9665 TPM 2.0 provides robust hardware security for encryption, device authentication, and secure boot applications. |
| Ensures system reliability with an adjustable watchdog timer and smart fan control that helps maintain optimum temperature and performance. |
| The board is optimized for low power consumption, with a typical TDP of 6W-6.5W, making it suitable for energy-efficient embedded and IoT applications. |
• Industrial Automation：
| The dual Ethernet, RS-232 ports, and GPIO headers make this board suitable for controlling machinery, sensors, and automated processes in industrial settings. |
| The compact size, low power consumption, and TPM security features make it an ideal candidate for IoT gateways where secure data transmission and network connectivity are essential. |
| With support for triple independent displays (Display, DP, VGA) and UHD graphics, the board can drive content for media centers, digital signage, and information kiosks. |
| This board’s ability to process data locally with its efficient CPU and versatile I/O options makes it perfect for edge computing applications, where real-time data processing is critical. |
| Its small form factor, low power consumption, and high reliability make it suitable for embedded systems such as kiosks, point-of-sale (POS) terminals, and medical devices. |
System
Display

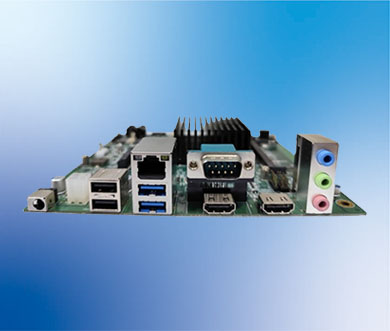

External I/O
Internal I/O
Mechanical and Environment
| CPU | N4200,(4C@2.50GHz CPU[Burst Mode]750MHz GFX[Turbo],~6W TDP) N3350,(2C@2.40GHz CPU[Burst Mode],650MHz GFX[Turbo],~6W TDP) E3930,(2C@1.80GHz CPU[Burst Mode],550MHz GFX [Turbo],~6.5W TDP) |
| System Chipset | SoC |
| System Memory | one 204-pin So-DIMM DDR3L 1600MHz Up to 8 GB |
| Audio | Realtek® ALC262 HD Audio |
| Ethernet | LAN1: Intel® i211-AT Gigabit Ethernet Controller LAN2: Intel® i211-AT Gigabit Ethernet Controller |
| BIOS | AMI® 64Mb SPI BIOS MX25U6435 |
| I/O Chip | ITE8625 |
| Expansion | 1 x 2280 & 2242 M.2 B Key (SATA III Signal) 1 x PCIe x4 (PCI-E x2 Signal) |
| Watchdog Timer | Reset: 1 sec. ~ 255min. and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring System Temperature, Voltage, with Auto FAN Control |
| Smart Fan Control | Yes RPM mode |
| S3 / S4 | Yes |
| TPM | Option Infineon® 9665 TPM 2.0 |
| Graphics Engine | Intel® Integrated HD Graphic Engine |
| Display Interfaces | 1 x DisplayPort,1 x Display,1 x VGA DP to VGA RTD2166 eDP to Display CH7211A |
| Display Capability | Supports Three Independent Displays : VGA, Display, DP * Please note: 1.DP does not support audio output due to the Apollo Lake SoC specification 2.DP and VGA cannot run simultaneously due to the Apollo Lake SoC specification 3.Display does not support audio output due to APL eDP not support |
| Audio | 1 x Line-out, 1 x Mic-in |
| USB | 4 x USB 3.0 |
| LAN | 2 x RJ-45 |
| Display | 1 x Display |
| DisplpayPort | 1 x DisplayPort |
| VGA port | 1 x VGA |
| ATX-in | ATX V2.3 |
| GPIO | 1 x GPIO Header |
| USB | 4 x USB 2.0 Header (2 x USB 2.0 Ports) |
| COM(Serial Port) | 2 x RS-232 Header |
| SATA | 2 x SATAIII |
| ATX-in | 1 x 20 Pin ATX-In Connector |
| MIO | 1 x 4 pin CPU Fan Header 1 x 4 Pin System Fan Header 1 x 8-bits GPIO Header 1 x Front Audio 1 x Front Panel Header 1 x Onboard Buzzer 1 x CMOS Battery Socket 1 x LPC Header |
| Power Type | ATX |
| Dimensions(L)x(W) | 6.7” (L) x 6.7” (W) |
| AddTime | Category | Model | Specification | Version | Data size | Download |
| 2024-12-13 | Motherboard | ITX-N3350 | INF | v10.1.1.45 | 4MB |  |
| 2024-12-13 | Motherboard | ITX-N3350 | VGA | 101.2134 | 493MB | |
| 2024-12-13 | Motherboard | ITX-N3350 | Intel Lan Gbe | v29.4 | 6MB | |
| 2024-12-13 | Motherboard | ITX-N3350 | TXE | v3.1.94.3086 | 156MB | |
| 2024-12-13 | Motherboard | ITX-N3350 | SerialIO | v30.100.1750 | 2MB | |
| 2024-12-13 | Motherboard | ITX-N3350 | HD_AUDIO | R283 | 414MB | |
