CPU	Onboard Intel Dual Core Atom D525 processor 1.8Ghz DMI 667Mb/s
CHIPSET	Intel® ICH8M
GRAPHICS	Integrated Intel® Graphics Media Accelerator 3150(GMA3150) Integrated DirectX 9 graphics processor Max DVMT Graphics Memory up to 384MB
MEMORY	Single-channel DDR3 memory architecture 2 x 240-pin DDR3 SO-DIMM  Verticaltypesocket support up to 4GB Support DDR3 800 SO DIMM Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT	1 x PCI slot  (3x PCI through Riser card)1x mini PCI-E
STORAGE	ICH8M 2 x Serial ATA 3.0Gb/s devices 1xmSATA RAID controller 2x SATAII
AUDIO	2XRealtek ALC662 HD audio CODEC or ALC262D(option) Compliant with HD audio specification
LAN	2x RJ45 Realtek 8111DL Giga Lan

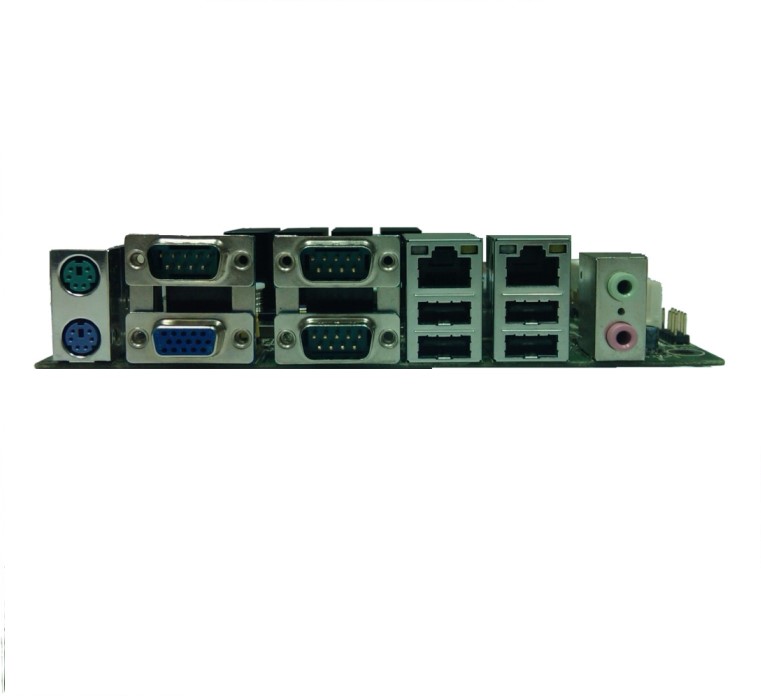

REAR PANEL I/O	1 x PS/2 keyboard & PS/2 mouse connectors 1 x D-sub(VGA) 3 x Serial port (COM1) 2 x RJ45 LAN connector 1 x Audio port (Line-in(option), Line-out, Mic-in option) 4 x USB 2.0 Ports
INTERNAL I/O CONNECTORS & HEADERS	1 x 20-pin ATX Power Supply connector 1 x 3-pin CPU_FAN connector 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Clear CMOS header 2 x USB 2.0 headers support additional 4 USB 2.0 Ports 1 x 3-pin SYS_FAN connector 2 x SATA 3Gb/s connectors 1 x Serial port 1xPATA(CF card IF)
SYSTEM BIOS	AMI BIOS with 8Mb SPI Flash ROM Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot F11 hot key for boot up devices option Support USB boot AMI flash tool
FORM FACTOR	Mini ITX 170x170mm
